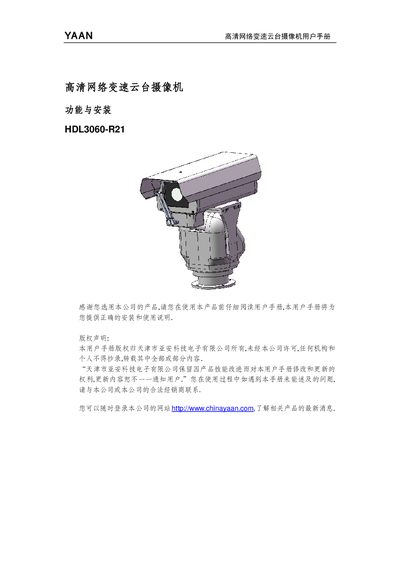

The YAAN HDL3060-R21 network PTZ camera user manual provides safety guidelines, installation steps, technical specs, operation instructions and basic…
This manual introduces the YAAN HDL3060-R21 high‑definition network PTZ camera, covering its key features, technical parameters and recommended applications. It explains safety precautions that must be observed before installation, such as using approved accessories, proper grounding and avoiding exposure to fire or moisture.
Detailed installation procedures are provided, including hardware preparation, mounting, wiring, power connection and initial commissioning. The guide also describes how to operate the camera via the client software, configure preset positions, automatic scanning and cruising, and perform simple fault diagnosis using the troubleshooting appendix. This manual is written in Chinese.
| Power supply | AC24V±10%, 50/60 Hz |
|---|---|
| Peak power | 80 W |
| Horizontal rotation angle | 0° ~ 360° (continuous) |
| Vertical rotation angle | -60° ~ +10° |
| Horizontal rotation speed | 2°/s ~ 9°/s |
| Vertical rotation speed | 1°/s ~ 4°/s |
| Preset positions | 80 (with lens preset) |
| Image sensor | Sony 1/3" CCD, 1.3 MP |
| Minimum illumination (color) | 0.5 Lux @ F1.6 |
| Minimum illumination (black‑white) | 0.02 Lux @ F1.2 |
The manual requires using only approved accessories, grounding the unit according to GB50198‑94, disconnecting power before cleaning, and avoiding fire‑hazardous or overly humid locations.
The device supports 80 preset positions, each storing PTZ coordinates and lens focus settings.
It operates on an AC24 V supply with a tolerance of ±10 % at 50 Hz or 60 Hz.
The camera can rotate continuously from 0° to 360° horizontally.
