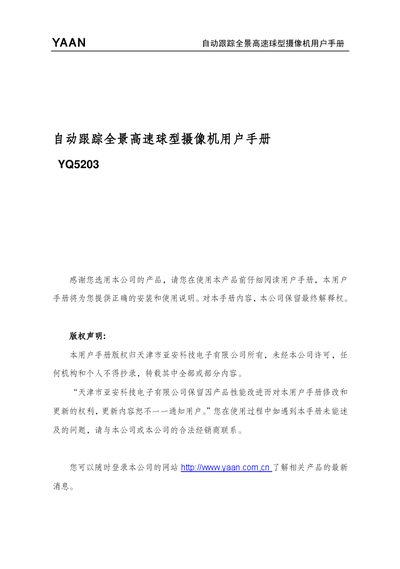

The YAAN YQ5203 ball camera user manual provides installation, operation, settings, and maintenance instructions for the high‑speed panoramic tracking camera.
This manual covers safety precautions, product overview, installation steps, and detailed menu navigation for the YAAN YQ5203 automatic tracking panoramic high‑speed ball camera. It includes warnings, recommended accessories, and environmental requirements to ensure safe and reliable operation.
The guide explains the camera’s dual‑lens structure, technical parameters, communication settings, and special functions such as auto‑tracking, preset positions, and shortcut keys. Appendices provide routine maintenance tips and troubleshooting procedures. This manual is written in Chinese.
| Power Supply | AC 24 V ± 25 % , 50/60 Hz, 75 W peak |
|---|---|
| Horizontal Rotation Angle | 0° ~ 360° continuous |
| Communication Interface | RS485 / RS422 |
| Maximum Preset Positions | 128 |
The camera supports industry protocol, YAAN protocol, Pelco‑P and Pelco‑D protocols.
Up to 128 preset positions can be configured.
