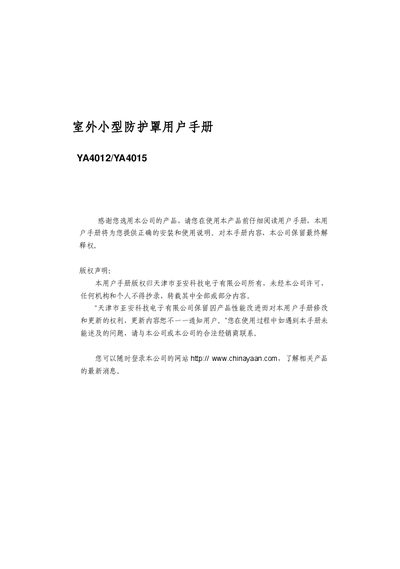

This document is the user manual for the outdoor small protective cover YA4012/YA4015, which provides installation and usage instructions for the product, as well as safety precautions and considerations.
This manual offers detailed guidance for installing and safely operating the YAAN YA4012/YA4015 outdoor small protective enclosure. It includes safety warnings, recommended tools, wiring instructions, and grounding requirements to ensure reliable performance in outdoor environments.
Technical data such as input voltage, power consumption, dimensions, weight, and protection rating are listed, along with part diagrams and a complete parts list to assist with assembly and maintenance. This manual is written in Chinese.
| Input voltage | AC24V±20%, 50/60Hz |
|---|---|
| Power consumption | ≤30W (including fan heating component) |
| Fan power | ≤2W |
| Weight (YA4012) | 2.4kg (without camera) |
| Protection rating | IP67 |
Read the manual, use the specified power type and voltage, disconnect power before cleaning, and install a lightning arrester.
The enclosure requires AC24V±20% at 50/60 Hz.
The enclosure shell must be effectively grounded.
The YA4012 measures 362 mm (L) × 140 mm (W) × 145 mm (H).
