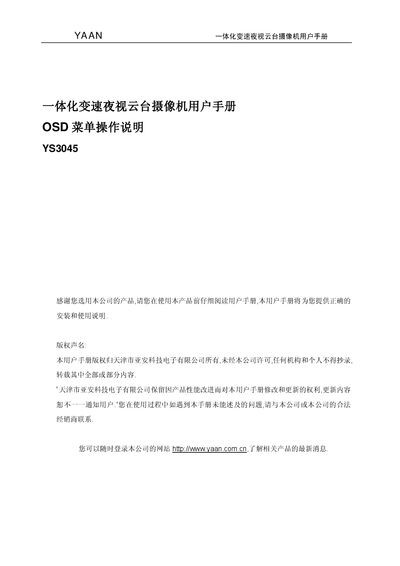

User manual for the Yaan YS3045 integrated variable‑speed night‑vision PTZ camera with OSD menu operation instructions.
This manual provides step‑by‑step instructions for installing, configuring and operating the Yaan YS3045 integrated variable‑speed night‑vision PTZ camera. It covers OSD menu navigation, PTZ parameter settings, function settings, display options, system information queries and camera parameter adjustments.
The guide also details auxiliary PTZ functions such as rain‑washer, power‑loss memory, and origin settings, as well as camera features like digital zoom, focus modes, white‑balance, aperture, shutter speed and anti‑shake settings. This manual is written in Chinese.
| Default PTZ address | 001 |
|---|---|
| Supported baud rates | 2400, 4800, 9600, 19200 bps |
| Communication protocols | Pelco P, Pelco D, industry V0.0, Yaan |
| Default language | Chinese |
| Digital zoom default | Off |
| White balance default | Auto |
| Aperture mode default | Auto |
| Shutter speed default | 1/50 sec |
| Backlight compensation default | Center mode |
| Anti‑shake default | Off |
Enter the PTZ address menu, then use the up/down keys to add or subtract 1, or the right key to add 10 to the address and save the change.
The camera supports four baud‑rate options: 2400, 4800, 9600 and 19200 bps.
Select the date or time menu item, then use the up/down keys to change year, month, day, hour or minute; the system saves the setting when you exit left.
Digital zoom is disabled by default; you can enable it in the OSD menu by selecting the digital zoom option and choosing a factor such as ×2, ×4, ×8 or ×16.
