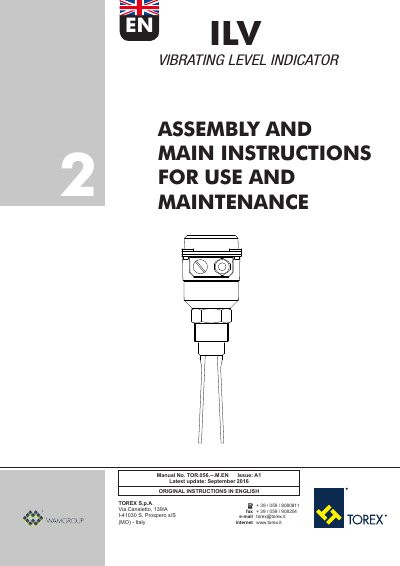

Original English manual for the Torex ILV 2 TOR.056.--.M.EN vibrating level indicator covering installation, operation, safety and technical data.
The Torex ILV 2 TOR.056.--.M.EN vibrating level indicator is a measurement device designed for harsh industrial environments. This manual provides the complete set of instructions for safe installation, proper operation, routine and extraordinary maintenance, and part replacement.
It includes safety prescriptions, technical specifications such as supply voltage, output signal, dimensions and environmental limits, as well as handling, transport and disposal guidelines. The document is intended for qualified technicians, installers and operators who need detailed guidance throughout the device’s lifecycle.
| Supply voltage | 230 VAC 50‑60 Hz |
|---|---|
| Output signal | 4‑20 mA |
| Cable length | 30 m (100 ft) |
| Enclosure protection | IP66 |
| Thread size | R 11 2" |
| Conduit entry size | M25×1.5; M20×1.5 |
| Overall dimensions | 125 × 125 × 300‑4000 mm |
| Mounting thread | M20×1.5 |
| Ambient temperature range | -40 °C ÷ +40 °C |
| Operation temperature range | -40 °C ÷ +150 °C |
The device is powered from a 230 VAC supply at 50‑60 Hz.
It outputs a standard 4‑20 mA current signal.
The indicator can operate in ambient temperatures from –40 °C to +40 °C, with an extended operation range up to +150 °C.
