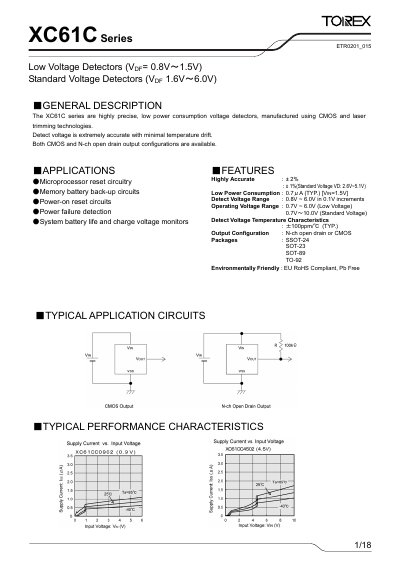

XC61C series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. Detect voltage is extremely accurate with minimal temperature drift. Both CMOS and N-ch open drain output configurations are available.
The XC61C series are highly precise, low‑power voltage detectors manufactured using CMOS and laser‑trimming technologies. They offer extremely accurate detection voltage with minimal temperature drift and are available in both CMOS and N‑channel open‑drain output configurations.
Typical applications include microprocessor reset circuitry, memory battery backup, power‑on reset, power‑failure detection, and system battery‑life and charge‑voltage monitoring. Performance specifications feature ±2% accuracy (±1% for standard voltage), 0.7 µA typical supply current at 1.5 V, detection range 0.8 V–6.0 V in 0.1 V steps, and operating voltage up to 10 V for standard versions.
| Accuracy | ±2% (±1% for standard voltage) |
|---|---|
| Typical Supply Current | 0.7 µA (V_IN=1.5 V) |
| Detect Voltage Range | 0.8 V ~ 6.0 V (0.1 V steps) |
| Operating Voltage Range | 0.7 V ~ 6.0 V (low voltage) / 0.7 V ~ 10.0 V (standard voltage) |
| Temperature Coefficient | ±100 ppm/°C |
| Output Configuration | N‑channel open‑drain or CMOS |
| Package Types | SSOT‑24, SOT‑23, SOT‑89, TO‑92 |
The typical supply current is 0.7 µA when the input voltage is 1.5 V.
The detectors are offered with either an N‑channel open‑drain output or a CMOS output.
The low‑voltage version detects voltages from 0.8 V to 6.0 V in 0.1 V increments.
Yes, the devices are EU RoHS compliant and lead‑free.
