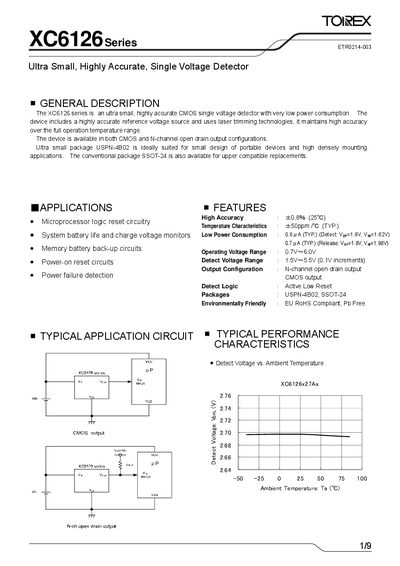

The XC6126 series is an ultra small, highly accurate CMOS single voltage detector with very low power consumption. The device includes a highly accurate reference voltage source and uses laser trimming technologies, it maintains high accuracy over the full operation temperature range. The device is available in both CMOS and N-channel open drain output configurations. Ultra small package USPN-4B02 is ideally suited for small design of portable devices and high densely mounting applications. The conventional package SSOT-24 is also available for upper compatible replacements.
The XC6126 series is an ultra‑small, highly accurate CMOS single‑voltage detector with low power consumption. It is offered in CMOS and N‑channel open‑drain output configurations and is supplied in USPN‑4B02 and SSOT‑24 packages, suitable for portable and high‑density designs.
The document provides electrical characteristics, pin assignments, absolute maximum ratings, typical application circuits, and usage notes, along with test circuit examples and legal disclaimer information.
| Operating Voltage Range | 0.7 V ~ 6.0 V |
|---|---|
| Output Current (max) | 20 mA |
| Power Dissipation (SSOT‑24) | 150 mW |
| Operating Temperature Range | -40 °C ~ +85 °C |
| Hysteresis Width | 0.02 V ~ 0.08 V |
It operates from –40 °C up to +85 °C.
The maximum output current is 20 mA.
