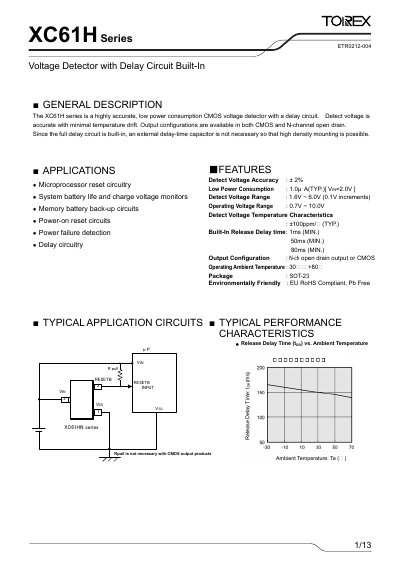

The XC61H series is a highly accurate, low power consumption CMOS voltage detector with a delay circuit. Detect voltage is accurate with minimal temperature drift. Output configurations are available in both CMOS and N-channel open drain. Since the full delay circuit is built-in, an external delay-time capacitor is not necessary so that high density mounting is possible.
The XC61H Series is a highly accurate, low‑power CMOS voltage detector that includes an internal delay circuit, eliminating the need for an external delay capacitor. It is intended for use in microprocessor reset circuits, battery‑monitoring, power‑on‑reset, and power‑failure detection applications.
Key features include selectable CMOS or N‑channel open‑drain output, a built‑in release delay from 1 ms to 50 ms, and a compact SOT‑23 package. The datasheet details electrical characteristics, pin assignments, typical application circuits, and recommended usage guidelines. This manual is written in Chinese.
| Detect Voltage Accuracy | ±2% |
|---|---|
| Low Power Consumption (typical) | 1.0 µA |
| Detect Voltage Range | 1.6 V ~ 6.0 V |
| Operating Voltage Range | 0.7 V ~ 10.0 V |
| Built‑In Release Delay Time (minimum) | 1 ms |
| Output Configuration | CMOS or N‑channel open drain |
| Package | SOT‑23 |
| Power Dissipation | 250 mW |
| Input Voltage Range | -0.3 V ~ 12.0 V |
| Output Current | 50 mA |
The built‑in release delay time is specified as a minimum of 1 ms, with typical values up to 50 ms depending on temperature.
The device can be configured for either CMOS output or an N‑channel open‑drain output.
The device is rated for an operating ambient temperature from –30 °C to +80 °C.
