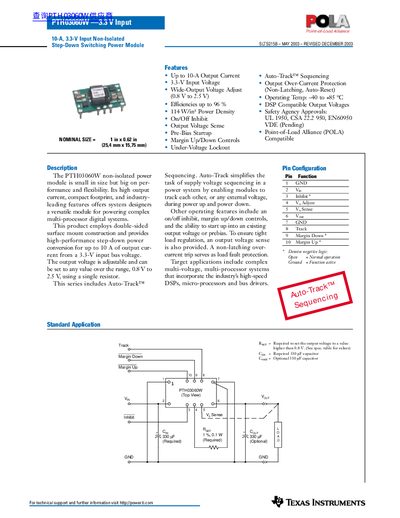

Texas Instruments PTH03060W Power Module Datasheet

About this manual

The PTH03060W is a non‑isolated step‑down switching power module that delivers up to 10 A of output current from a 3.3 V input bus. It features a wide‑output voltage adjust range (0.8 V – 2.5 V), high efficiency (up to 96 %), and built‑in protections such as over‑current, under‑voltage lockout, and on/off inhibit.

The datasheet provides pin configurations, electrical ratings, recommended input and output capacitors, and detailed application notes for designing high‑performance multi‑processor systems. It also includes ordering information, environmental ratings, and guidelines for adjusting the output voltage with external resistors.

What's inside

• Features
• Description
• Pin Configuration
• Pin Descriptions
• Ordering Information
• Environmental & Absolute Maximum Ratings
• Electrical Specifications
• Application Notes
• Capacitor Recommendations
• Output Voltage Adjustment

Specifications

Frequently asked questions

What is the maximum output current of the PTH03060W?

The module can deliver up to 10 A of output current.

How efficient is the PTH03060W?

The device achieves efficiencies up to 96 %.
