The PT6510 series power modules are the recommended direct replacements for the PT6500 series in existing designs. These modules have the same output current rating (8A) and similar functionality. They offer improved power dissipation and efficiency, significantly reduced inrush current, and better line and load regulation.

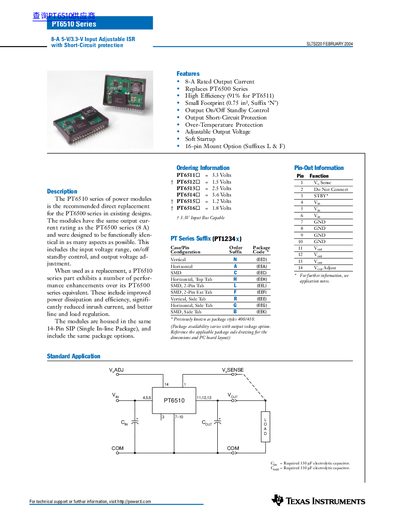

The document describes the PT6510 Series of power modules, which serve as a recommended direct replacement for the PT6500 Series. These modules feature an 8-A rated output current and operate with a 5-V/3.3-V input voltage range. Key characteristics include adjustable output voltage, on/off standby control, and built-in protection against short circuits and over-temperature conditions.
The module has an 8-A rated output current.
The modules have a rated output current of 8 A.
For an output of 3.6 V, the input voltage range is 4.5 to 6 V.
The module requires a 330 pF output capacitor and an input capacitor rated for at least 1.2 Arms ripple current.
