The SN74LVC1G04 is a single inverter gate produced by TI. The gate works with a voltage of 1.65-V to 5.5-V and can be used for 5-V VCC operation. The device fully meets the specifications for partial power-down applications using Ioff. The Ioff circuit disables the outputs to prevent damaging current backflow through the device when it is powered down.

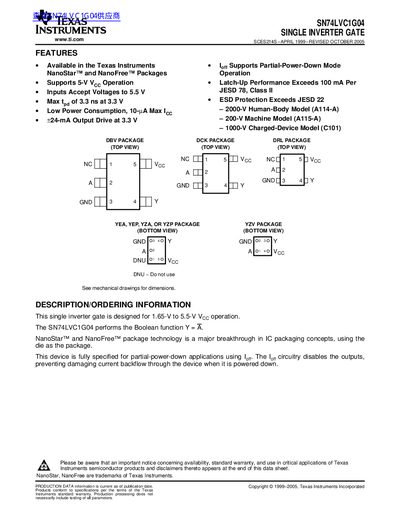

The document describes the SN74LVC1G04, a single inverter gate designed for operation with supply voltages ranging from 1.65 V to 5.5 V. It supports partial-power-down mode and features NanoStar™ and NanoFree™ package technologies.
Key specifications include a maximum propagation delay of 3.3 ns at 3.3 V, low power consumption, and ESD protection exceeding JESD 22 standards. The device is available in various packages including DBV, DCK, DRL, YEA, YEP, YZA, YZP, and YZV.
| Output Drive Current (Low) at 3.3 V | -24 mA |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
The device performs the Boolean function Y = A.
Inputs can accept voltages up to 5.5 V.
