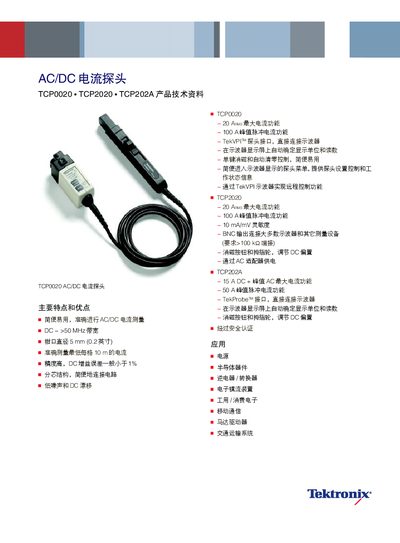

Technical data sheet for Tektronix TCP0020, TCP2020 and TCP202A AC/DC current probes, detailing specifications, features, and ordering options.
The TCP0020, TCP2020 and TCP202A are a family of high‑performance AC/DC current probes designed for use with a wide range of oscilloscopes. They provide easy‑to‑use interfaces (TekVPI™ or TekProbe™) and automatic display of measurement units on the oscilloscope screen.
The probes offer up to 20 A RMS (TCP0020/TCP2020) or 15 A DC + peak AC (TCP202A) current range, 50 MHz bandwidth, and high accuracy. The data sheet lists physical dimensions, power requirements, safety certifications, ordering accessories and optional calibration services. This manual is written in Chinese.
| Bandwidth (DC) | ≥ 50 MHz |
|---|---|
| Maximum RMS current (TCP0020/TCP2020) | 20 A RMS |
| Maximum DC + peak AC current (TCP202A) | 15 A DC + peak AC |
| Maximum peak current | 100 A |
| Sensitivity | 10 mA (1 mV/div) |
| DC accuracy | ± 1 % typical |
| Insertion impedance @1 MHz | 0.036 Ω |
| Signal delay | 17 ns |
| Operating temperature | 0 °C – +50 °C |
| Safety standard | IEC61010‑1:2001 |
The TCP0020 probe can measure up to 20 A RMS.
The TCP2020 probe is powered by an AC adapter.
All three probes have a DC bandwidth of at least 50 MHz.
