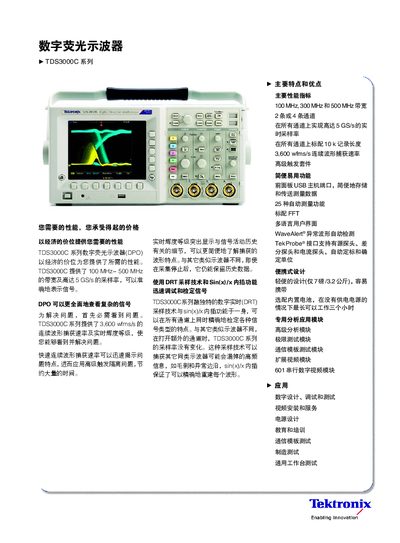

Overview of the Tektronix TDS3000C series digital phosphor oscilloscopes, their key features, specifications and optional accessories.
The TDS3000C series offers digital phosphor oscilloscopes with bandwidth options of 100 MHz, 300 MHz and 500 MHz, up to 5 GS/s real‑time sampling, and a continuous capture rate of 3,600 wfms/s. The instruments are lightweight (≈3.2 kg), include a front‑panel USB 2.0 host port, and can be equipped with an optional battery for up to three hours of untethered operation.
The series supports a range of optional modules such as advanced analysis, limit testing, communication‑template testing, and video analysis, plus a variety of probe options. Detailed electrical characteristics, interface options (USB, Ethernet, GPIB, RS‑232, VGA), and ordering information are provided. This manual is written in Chinese.
| Bandwidth | 100 MHz, 300 MHz, 500 MHz |
|---|---|
| Channel Count | 2 or 4 channels |
| Maximum Real‑Time Sampling Rate | Up to 5 GS/s |
| Record Length | 10 k points |
| Continuous Waveform Capture Rate | 3,600 wfms/s |
The optional battery provides up to three hours of continuous operation without external power.
A front‑panel USB 2.0 host port allows storage and transfer of measurement data to a PC.
The vertical resolution is 9 bits.
