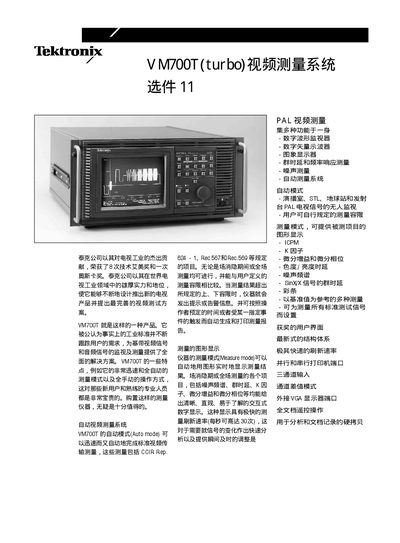

The VM700T (turbo) video measurement system is an option that combines multiple functions, including digital waveform monitor, digital vector oscilloscope, image display, group delay and frequency response measurement, noise measurement, and automatic measurement system. It has automatic mode and measurement mode, providing graphical display of the measured items. It is suitable for unmanned monitoring of PAL TV signals in studios, STLs, earth stations, and transmitters. It has user-defined measurement tolerances, an award-winning user interface, state-of-the-art architecture, and extremely fast refresh rate.
The VM700T is a video measurement system that provides automatic and manual measurement modes for video and audio signals, including CCIR, Rec.567, and Rec.569 standards. It offers fast measurement rates (up to 30 measurements per second) and a variety of display options such as waveform, vector, and pattern modes.
The instrument supports remote operation via RS‑232C, FTP and TELNET, and can store measurement results in NVRAM or export them to a PC. Technical specifications include a temperature operating range of 0‑50 °C, input signal amplitude up to 1 V p‑p, and a minimum input attenuation of 60 dB. This manual is written in Chinese.
| Minimum Input Attenuation | 60 dB |
|---|
