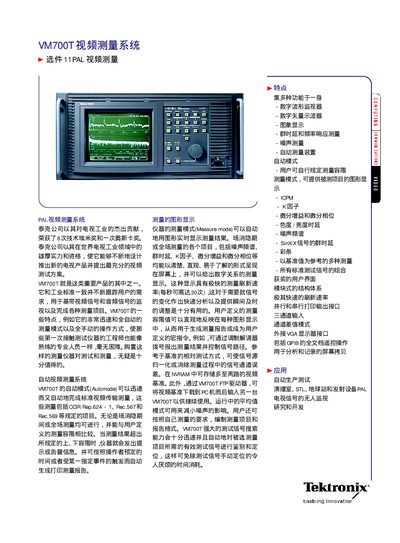

This document introduces the PAL video measurement system VM700T by Tektronix, including its features and functions such as automatic measurement mode, graphical display, and measurement projects.
The VM700T is a video measurement instrument designed for PAL video signals. It offers automatic and manual measurement modes, real‑time graphical displays, and a range of analysis functions such as noise spectrum, group delay, K‑factor and differential gain/phase.
The system supports three input channels with differential options, remote operation via RS‑232C (FTP or TELNET), and a variety of optional accessories for NTSC, dual‑standard, audio, and other measurements. Detailed specifications, ordering information and software utilities are included. This manual is written in Chinese.
| Operating temperature range | 0 °C – 50 °C |
|---|---|
| Warm‑up time | minimum 20 minutes |
| Typical input signal level for accuracy | 1 V p‑p (6 dB) |
| Required un‑weighted SNR | ≥ 60 dB |
| White‑bar level measurement accuracy | ±0.596 % absolute, ±0.2 % relative |
| Display refresh rate | up to 30 updates per second |
