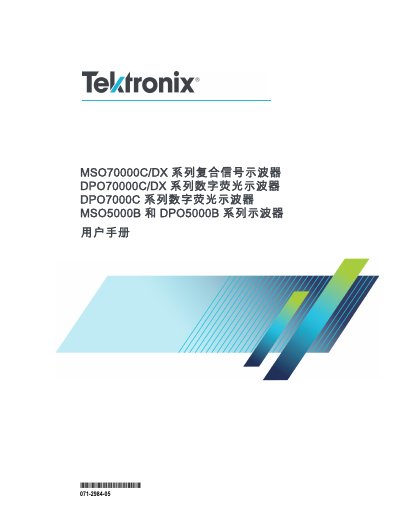

This manual provides installation, operation, safety information, and technical specifications for the Tektronix MSO70000C/DX series composite signal…
The Tektronix MSO70000C/DX series user manual covers safety guidelines, warranty terms, and proper handling of the instrument, including ESD protection and power‑up/down procedures. It also describes how to install optional accessories such as probes and hard‑disk upgrades.
The document details the oscilloscope’s functional capabilities, including acquisition modes, trigger options, display settings, and advanced features like FastAcq, MagniVu, and MultiScope triggering. Technical specifications such as bandwidth, rise time, input capacitance, and compliance with EMC and safety standards are listed in the specifications section.
| Bandwidth (–3 dB) TPP0500/B | 500 MHz |
|---|---|
| System rise time (typical) TPP0500/B | <350 ps |
| System input capacitance (rigid tip) | 3.9 pF ±0.3 pF |
| Maximum input voltage | 300 V RMS |
Tektronix guarantees one year from shipment against material and workmanship defects, offering repair or replacement at no charge for parts and labor.
Optional accessories include grounded leads, crocodile clips, micro‑CKT test ends, PCB test point adapters, and various probe tip replacements identified by Tektronix part numbers.
