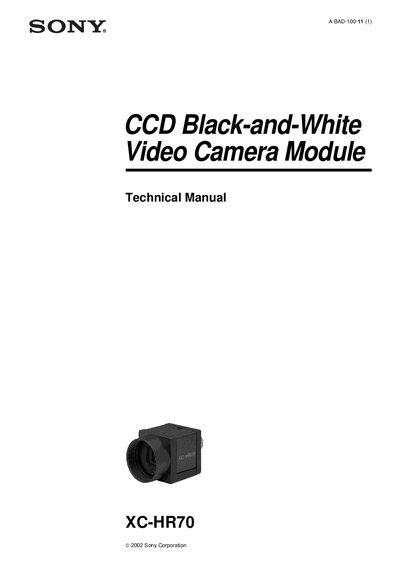

The Sony XC-HR70A-BAD-100-11 technical manual provides overview, features, connection diagram, mode settings, specifications, and operation instructions for…
The XC-HR70A-BAD-100-11 is a Sony CCD black‑and‑white video camera module offering 800,000‑pixel XGA‑compatible image quality and a range of configurable modes such as gain, binning, high‑rate scan, and external trigger shutter. It supports both internal and external synchronization via HD/VD signals and includes a rear‑panel DIP switch array for detailed control.
The manual covers system components, connection diagrams, part locations, rear‑panel switch settings, mode configurations, input/output specifications, video output modes, and full technical specifications including sensor dimensions, power requirements, operating temperature, and mechanical dimensions.
| Effective pixels | 1034 × 779 (H/V) |
|---|---|
| CCD vertical driving frequency | 23.23 kHz ±1% |
| CCD horizontal driving frequency | 29.5 MHz |
| Cell size | 4.65 × 4.65 µm (H/V) |
| Power consumption | 2.0 W |
| Operating temperature | –5 to +45 °C |
| External dimensions (W×H×D) | 29 × 29 × 30 mm |
| Mass | 50 g |
| MTBF | 88,044 hours |
Set the external trigger shutter mode switch (bits 6 to 8) on the rear‑panel DIP switches to ON.
The camera module consumes 2.0 W of power.
The video output frequency is 29.2 Hz in normal mode and 58.4 Hz in binning mode.
The module measures 29 mm × 29 mm × 30 mm (W × H × D).
