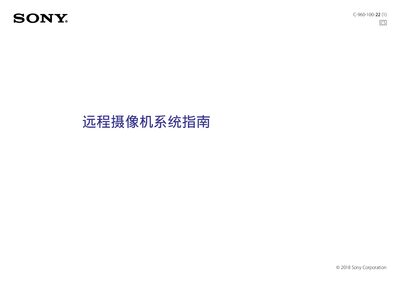

The Sony C-960-100-22 Remote Camera System Guide provides setup instructions, connection details, and application examples for various venues.
This guide explains how to install, configure, and operate the Sony Remote Camera System (model C-960-100-22). It includes typical application scenarios such as small studios, live events, churches, classrooms, and conference filming, and describes the benefits of using the system.
The document covers connections and basic setup (IP address configuration, serial RS‑422/RS‑232C links, pin assignments), detailed product information, enhanced analysis unit applications, and an appendix with compatibility charts and wiring diagrams.
| RS‑422 RJ45 pinout | 1 TX–, 2 TX+, 3 RX–, 4 GND, 5 GND, 6 RX+, 7 N.C., 8 N.C. |
|---|---|
| RS‑232C pinout (VISCA) | 1 DTR IN, 2 DSR IN, 3 TXD IN, 4 GND, 5 RXD IN, 6 GND, 7 SIRCS OUT, 8 Unused |
| TALLY I/O terminals (RM‑IP500) | 10 TALLY IN/CONTACT OUT terminals |
You can set the IP address automatically via the RM‑IP500 (see page 16) or manually using the RM‑IP Setup Tool (see page 18).
The BRC‑X1000 control unit is compatible with BRC‑X1000, BRC‑X401, BRC‑H800, BRC‑H780, SRG‑201M2, SRG‑HD1M2, SRG‑360SHE, SRG‑280SHE, and RM‑IP500.
Use Category 5e or higher shielded twisted‑pair network cable for RS‑422 connections.
