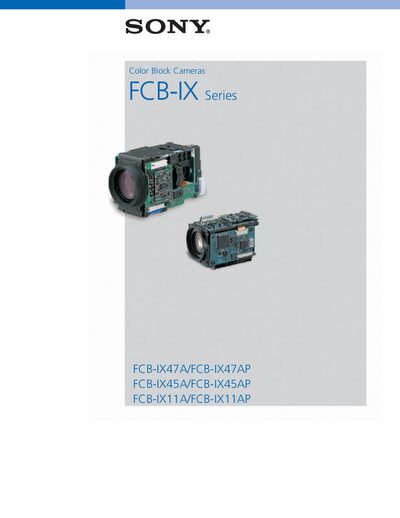

The Sony FCB-IX Series color block cameras datasheet details specifications, features, and pin assignments for models FCB-IX47A, FCB-IX45A, and FCB-IX11A.
The FCB-IX Series from Sony offers high‑performance digital signal processing, various auto‑focus and exposure modes, and low power consumption. Models include the ultra‑compact FCB-IX11A/IX11AP with a 40× zoom ratio and the larger FCB-IX47A/IX47AP and FCB-IX45A/IX45AP with 72× total zoom.
The datasheet provides detailed technical specifications such as sensor type, zoom ratios, minimum illumination, power consumption, and pin‑assignment tables for video and control interfaces. It also lists connector types and mechanical dimensions for each camera model.
| Zoom Ratio (optical/digital) | 18x optical / 4x digital (72x total) |
|---|---|
| Minimum Illumination | 1.0 lx (typical) for FCB-IX47A/IX47AP |
| Image Sensor | 1/4-type Super HAD CCD |
| Power Consumption (motors inactive) | 1.5 W |
| Control Interface | VISCA (TTL/RS-232C signal level) |
The FCB-IX47A has a minimum illumination of 1.0 lx (typical).
The camera uses the VISCA interface with TTL/RS‑232C signal levels.
It provides a 72× total zoom (18× optical and 4× digital).
