Sony KD-75X9000E / 75X8566E / 65X9000E / 65X8566E / 65X8500E / 55X9000E / 49X9000E TV Reference Guide

The Sony TV Reference Guide provides safety information, installation steps, remote control usage, wiring diagrams, troubleshooting and specifications for…

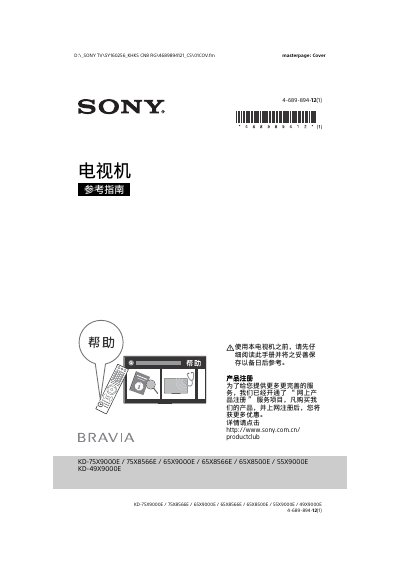

Sony KD-75X9000E / 75X8566E / 65X9000E / 65X8566E / 65X8500E / 55X9000E / 49X9000E TV Reference Guide - cover page
Brand
SONY
Category
Other
Document type
User Manual
Language
Chinese
Pages
28
File format
PDF
File size
2.6 MB
Published
04 October, 2026
Updated
04 October, 2026
MD5 checksum
697EADD85CC00BB4B3237A987DE31762
PDF
Sony KD-75X9000E / 75X8566E / 65X9000E / 65X8566E / 65X8500E / 55X9000E / 49X9000E TV Reference Guide PDF

About this manual

This reference guide is intended to help owners safely install, set up, and operate Sony KD‑75X9000E series televisions. It includes safety warnings, pre‑use precautions, component descriptions, remote‑control instructions, wiring diagrams, wall‑mount installation guidance, and troubleshooting tips.

The document also lists the technical specifications of the TVs, such as display type, wireless capabilities, audio output, HDMI and USB ports, and power‑supply requirements. Model‑specific notes and regulatory information are provided for each supported size and variant. This manual is written in Chinese.

What's inside

  • Safety Information
  • Precautions
  • Components and Controllers
  • Remote Control Usage
  • Wiring Diagram
  • Wall Mount Installation
  • Model‑specific Information
  • Troubleshooting
  • Specifications
  • Wireless and Bluetooth Technical Parameters

Specifications

LED backlight typeDirect LED (only KD‑75/65/55/49X9000E)
Bluetooth version4.1
Wi‑Fi standardsIEEE802.11ac/a/b/g/n
Audio output power8 W + 8 W (7 % THD)
HDMI inputs4 ports, supporting 4K resolution and HDCP 2.2
USB portsUSB1/2: USB 2.0, USB3: USB 3.0
Download PDF (2.6 MB)
