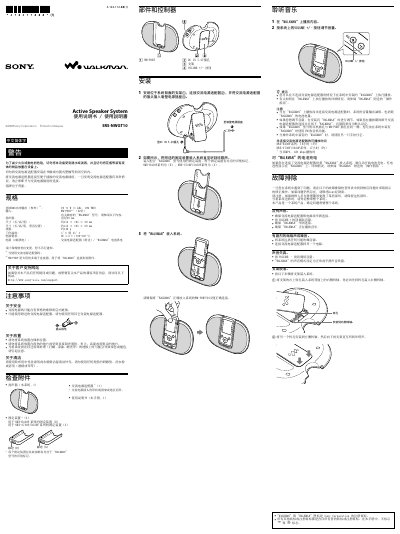

The Sony SRS‑NWGT10 Active Speaker System User Manual provides setup, operation, safety warnings, and troubleshooting instructions.
This manual covers the Sony SRS‑NWGT10 active speaker system, describing its features, specifications, and how to safely install and use the device with a WALKMAN or AC power adapter. It includes safety precautions, cleaning instructions, and battery‑charging guidance.
Key sections include detailed specifications, step‑by‑step installation, operation controls, accessory checks, and a troubleshooting guide to resolve common issues such as no sound, buzzing, or distorted audio. This manual is written in Chinese.
| Continuous RMS power output (reference) | 1W + 1W (1 kHz, 10% THD) |
|---|---|
| Input connector | WM-PORT (22‑pin) |
| Speaker diameter | 39 mm |
| Dimensions (horizontal) | ≈152 × 105 × 20 mm |
| Dimensions (vertical) | ≈152 × 105 × 60 mm |
| Weight | ≈140 g |
| Operating temperature | 5°C to 35°C |
| Power requirement | DC 5.2 V (100‑240 V) |
Use the supplied AC power adapter or a WALKMAN battery; do not use any other power adapters.
The system delivers a continuous RMS output of 1 W + 1 W at 1 kHz with 10 % THD.
Approximately 16 hours for the NWZ‑E430F series and 17 hours for the NWZ‑S730F/S630F series.
Check that the AC adapter and power cable are securely connected, increase the volume with the VOLUME + button, ensure the WALKMAN is firmly attached and playing music.
