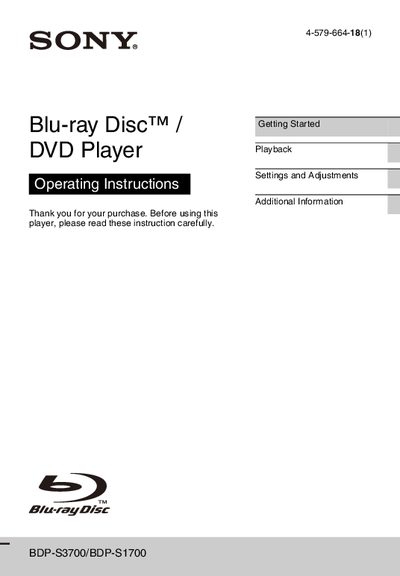

The Sony BDP-S3700/BDP-S1700 Blu-ray Disc/DVD Player Operating Instructions provide setup, safety, usage, and technical specifications.
This manual guides users of the Sony BDP‑S3700 and BDP‑S1700 Blu‑ray Disc/DVD players through safe installation, basic operation, and maintenance. It includes warnings, precautions, and disposal instructions to ensure safe handling of the device and its battery.
The document also details connectivity options such as HDMI, digital coaxial, USB, LAN and optional Wi‑Fi, explains playback functions for Blu‑ray, DVD and USB media, and lists the full technical specifications of the player.
| Laser type | Semiconductor laser |
|---|---|
| Digital Out (Coaxial) jack | Phono jack / 0.5 Vp‑p / 75 Ω |
| HDMI OUT connector | HDMI 19‑pin standard connector |
| LAN (100) terminal | 100BASE‑TX |
| USB port | USB Type‑A (for memory sticks, cameras, etc.) |
| DC input (BDP‑S3700) | 12 V DC, 650 mA |
| DC input (BDP‑S1700) | 12 V DC, 600 mA |
| Wireless LAN (BDP‑S3700 only) | IEEE 802.11 b/g/n, 2.4‑2.4835 GHz, 19.98 dBm |
| Power consumption (AC adaptor) | BDP‑S3700: 9.2 W, BDP‑S1700: 8.5 W |
| Dimensions | 230 mm × 194 mm × 39 mm (W×D×H) |
| Mass | 0.8 kg |
| Operating temperature | 5 °C to 35 °C |
| Operating humidity | 25 % to 80 % |
Connect an Ethernet cable to the LAN (100) terminal on the rear panel; the terminal is a 100BASE‑TX port. For the BDP‑S3700 model you can also enable wireless LAN using the built‑in Wi‑Fi (IEEE 802.11 b/g/n).
The player will not play lens‑cleaning discs, discs with non‑standard shapes, discs with stickers or tape, or certain formats such as BD‑X‑L, DVD‑RAM, HD‑DVD, DVD‑Audio, PHOTO‑CD, data‑part of CD‑Extras, Super VCD, and some DualDiscs.
