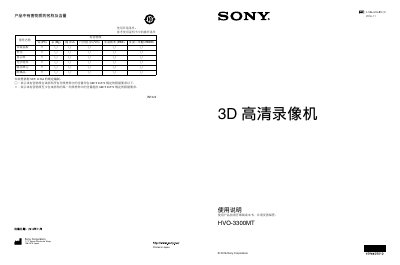

User manual for the Sony HVO-3300MT medical video recorder, covering setup, operation, safety and specifications.
The Sony HVO-3300MT is a medical‑grade video recorder used in operating rooms, radiology suites and other clinical environments. This manual provides detailed instructions for installation, system configuration, recording, playback, and system administration, as well as safety and EMC guidelines.
The guide also lists the device’s technical specifications, supported media formats, interface options, power requirements, and environmental limits, helping users safely integrate the recorder into hospital networks and ensure reliable operation. This manual is written in Chinese.
| Video recording format | MPEG‑4 A VC/H.264 |
|---|---|
| Audio recording format | AAC LC |
| File format | MP4 |
| Internal storage | 2 TB HDD |
| External storage options | USB, network (CIFS), DVD‑R, Blu‑ray |
| Recording resolutions | 720×480i, 720×576i, 1280×720p, 1920×1080i/p |
| Full‑HD bitrate (best) | 24 Mbps |
| Power requirements | 100 V–240 V AC, 50/60 Hz, 1.25 A–0.52 A |
| Operating temperature | 5 °C–40 °C |
| Dimensions (W×D×H) | 305 mm × 329 mm × 115.5 mm |
| Weight | ≈6.5 kg |
It can record to an internal 2 TB HDD, external USB drives, network shares (CIFS), DVD‑R discs and Blu‑ray discs.
The device operates on 100 V to 240 V AC, 50/60 Hz, with an input current between 1.25 A and 0.52 A.
The recorder is designed to operate between 5 °C and 40 °C.
