Skyworks Ceramic Band Pass Filters Data Sheet

Skyworks data sheet provides specifications, package options, and design information for its ceramic band pass filters.


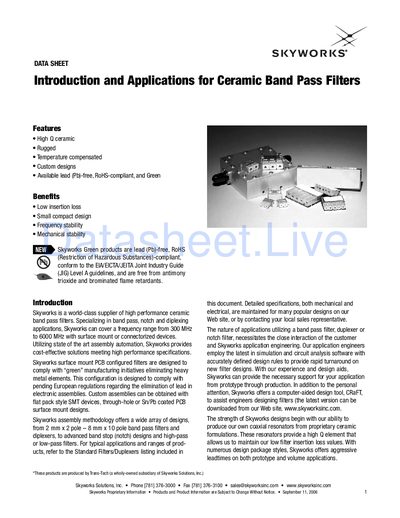

Skyworks Ceramic Band Pass Filters Data Sheet - cover page
Brand
Skyworks
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
10
File format
PDF
File size
193 KB
Published
30 September, 2026
Updated
30 September, 2026
MD5 checksum
3A3E27992FA03EB6F6D220DDB6FDB75D

About this manual

The document introduces Skyworks' ceramic band pass filters, describing their high‑Q, low‑loss performance and a wide range of applications from 300 MHz to 6 GHz. It highlights the company's design capabilities, custom options, and the CRaFT software tool for filter design.

Detailed specifications are listed, including frequency ranges, pole counts, insertion loss, impedance, temperature limits, and power handling. Various mechanical packages such as SMT, thru‑hole, and flat‑pack are described, along with dimensions and design examples using the CRaFT program.

What's inside

  • Introduction and Applications
  • Standard Capabilities
  • Standard Filters/Duplexers
  • Available Packages
  • Mechanical Drawings
  • Design Solutions Software (CRaFT)

Specifications

Center frequency300 MHz to 6 GHz
Number of poles2–10
Insertion loss1–4 dB typical
Impedance50 or 75 Ω
Operating temperature range-40 °C to +85 °C
Power handling (continuous)1 W typical
Mechanical packaging optionsPCB surface mount, thru‑hole, flat‑pack

Frequently asked questions

What is the operating temperature range of the filters?

The filters operate from –40 °C to +85 °C.

What is the typical insertion loss range?

Typical insertion loss is between 1 dB and 4 dB.

Which software does Skyworks provide for filter design?

Skyworks offers the CRaFT program to assist engineers in designing filters.
