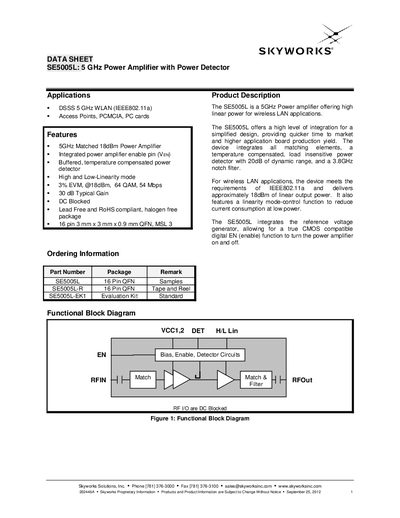

The SE5005L is a 5 GHz power amplifier with integrated detector, offering up to 18 dBm output and 30 dB typical gain in a RoHS‑compliant QFN package.
The Skyworks SE5005L is a 5 GHz matched power amplifier with an integrated, temperature‑compensated power detector. It is designed for IEEE 802.11a WLAN applications, providing up to 18 dBm linear output power and selectable high‑ or low‑linearity modes to balance performance and power consumption.
The device is supplied in a 16‑pin 3 mm × 3 mm × 0.9 mm QFN package (MSL 3) that is lead‑free and RoHS compliant. Detailed electrical characteristics, pin descriptions, and handling instructions are provided for designers and manufacturers.
| Frequency range | 5.15 – 5.75 GHz |
|---|---|
| Output power (high‑linearity mode) | 18 dBm |
| Typical gain | 30 dB |
| Small‑signal gain (high‑linearity mode) | 27 – 34 dB |
| 1 dB compression point (P1dB) | 22 – 25 dBm |
| Package type | 16‑pin 3 mm × 3 mm × 0.9 mm QFN |
| Supply voltage (VCC) | 3.0 – 3.6 V |
The SE5005L operates from 5.15 GHz to 5.75 GHz.
In high‑linearity mode it can deliver up to 18 dBm of output power.
The typical gain is about 30 dB.
The device is packaged in a 16‑pin QFN.
