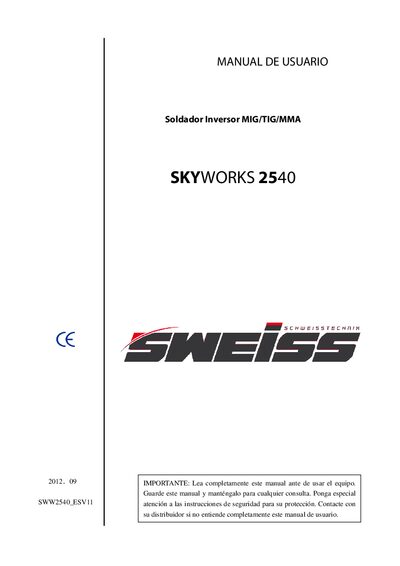

User manual for the SKY WORKS 2540 ESV11 inverter welding machine covering safety, installation, operation and maintenance.
The SKY WORKS 2540 ESV11 is an inverter‑based welding unit that supports MIG, TIG and MMA processes. This manual provides detailed safety instructions, installation steps, parameter settings, and maintenance procedures.
It includes wiring diagrams, troubleshooting tables, and technical specifications such as input voltage, power rating, duty cycle and dimensions, helping users operate the equipment safely and efficiently. This manual is written in Spanish.
| Input voltage (V) | 1~110/115±10% / 1~220/230/240±10% |
|---|---|
| Input current (A) | 35.3 |
| Input power (kW) | 3.88 |
| Efficiency | ≥80 % |
| Power factor | 0.98 |
| IP protection | IP23S |
| Dimensions (mm) | 615 × 280 × 480 |
| Weight (kg) | 24.5 |
Check the indicator circuit; the test light may be damaged or have a poor connection, and repair or replace the circuit as needed.
