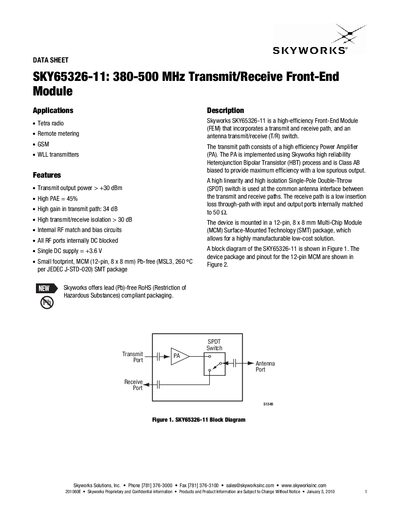

Technical data sheet for the Skyworks SKY65326-11 380‑500 MHz transmit/receive front‑end module.
The SKY65326-11 is a high‑efficiency front‑end module that integrates a transmit power amplifier, a receive path, and a single‑pole double‑throw antenna switch. It operates from 380 MHz to 500 MHz, provides >+30 dBm output power, and features internal DC‑blocked RF ports with a single +3.6 V supply.
The module is supplied in a 12‑pin 8 × 8 mm MCM surface‑mount package (MSL‑3, RoHS‑compliant). Detailed electrical specifications, absolute maximum ratings, recommended operating conditions, and evaluation‑board information are included for designers.
| Operating frequency range | 380‑500 MHz |
|---|---|
| Supply voltage (VCC1, VCC2, VREF1, VREF2, VC_BIAS) | 3.6 V (nominal) |
Yes, the device is Pb‑free and complies with RoHS (MSL‑3, 260 °C per JEDEC J‑STD‑020).
