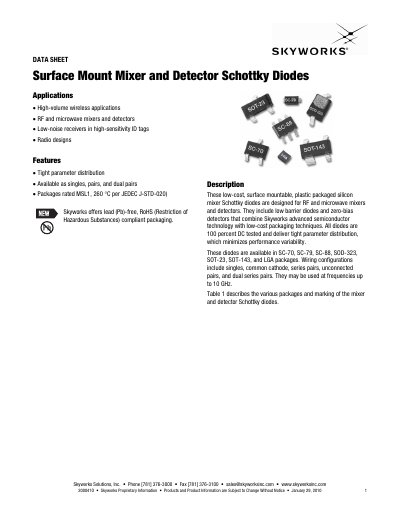

This is a product datasheet of Skyworks Solutions, Inc.'s surface mount mixer and detector Schottky diodes. The product has tight parameter distribution and can be used in high-volume wireless applications, RF and microwave mixers and detectors, low-noise receivers in high-sensitivity ID tags, and radio designs.
This datasheet describes Skyworks low‑cost, surface‑mountable mixer and detector Schottky diodes for high‑volume wireless, RF and microwave mixers, detectors, and low‑noise receivers. The diodes are offered in a variety of packages (SC‑70, SC‑79, SC‑88, SOD‑323, SOT‑23, SOT‑143, LGA) and wiring configurations (singles, pairs, dual pairs).
Key specifications include a forward current rating of 50 mA, power dissipation of 75 mW, and operating temperature range from –65 °C to +150 °C. The devices are RoHS‑compliant, moisture‑sensitivity level 1 (MSL1) and support frequencies up to 10 GHz. Detailed mechanical dimensions and tape‑and‑reel packaging data are provided for each package type.
| Forward current (steady state) | 50 mA |
|---|---|
| Power dissipation | 75 mW |
| Storage temperature range | -65 °C to +150 °C |
| Operating temperature range | -65 °C to +150 °C |
| Maximum junction temperature | +150 °C |
| Maximum reverse voltage | Rated V_B |
The diodes are rated for a steady‑state forward current of 50 mA.
They are offered in SC‑70, SC‑79, SC‑88, SOD‑323, SOT‑23, SOT‑143, and LGA packages.
The diodes are rated to Moisture Sensitivity Level 1 (MSL1) at 260 °C for 5 seconds.
Yes, Skyworks offers lead‑free, RoHS‑compliant packaging for these diodes.
