Skyworks MIS Chip Capacitors are a high reliability product that is suitable for applications requiring DC blocking, RF bypassing or as a fixed capacitance tuning element in filters, oscillators and matching networks.
The SC Series MIS Chip Capacitors from Skyworks are silicon‑oxide/nitride devices offering high reliability, low loss (typically 0.04 dB in a 50 Ω system), and wide temperature operation. They are suited for DC blocking, RF bypass, and as fixed‑capacitance tuning elements in filters, oscillators, and matching networks.

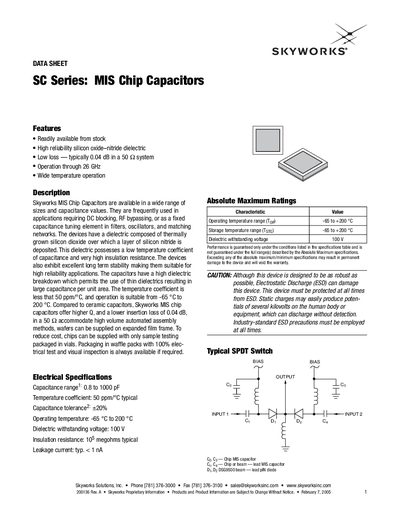

Key specifications include a capacitance range of 0.8 pF to 1000 pF, temperature coefficient of 50 ppm/°C, operating temperature from –65 °C to 200 °C, dielectric withstanding voltage of 100 V, and leakage current below 1 nA. The datasheet also details part‑number structure, chip dimensions, and absolute maximum ratings.
| Capacitance range | 0.8 to 1000 pF |
|---|---|
| Temperature coefficient | 50 ppm/°C typical |
| Capacitance tolerance | +20% |
| Operating temperature | -65 °C to 200 °C |
| Dielectric withstanding voltage | 100 V |
| Insulation resistance | 10 MΩ typical |
| Leakage current | < 1 nA |
They operate from –65 °C to 200 °C.
Typical leakage current is less than 1 nA.
The dielectric withstanding voltage is rated at 100 V.
They have a low loss, typically 0.04 dB in a 50 Ω system.
