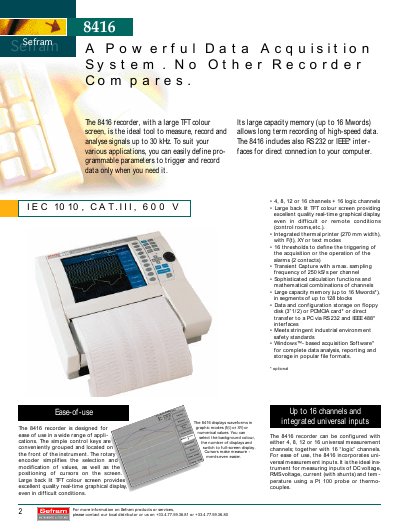

A powerful data acquisition system featuring 4 to 16 channels, a large TFT screen, integrated thermal printer, and Windows-based software for analysis.
The Sefram 8416 is a data acquisition system designed for measuring, recording, and analyzing signals up to 30 kHz. It features 4, 8, 12, or 16 universal measurement channels plus 16 logic channels, equipped with a large backlit TFT color screen and an integrated thermal printer. The device supports various input types including DC voltage, RMS voltage, current, and temperature via thermocouples or Pt 100 probes.
| Channels | 4, 8, 12 or 16 and 16 logic channels |
|---|---|
| Bandwidth | 30 kHz |
| Sampling Frequency | 250 kHz/ channel max. |
| Memory | 2 Mwords (16 Mwords optional) |
| Resolution | 14 bits |
| Display | Backlight LCD screen (10"4), TFT colour or B&W |
| Paper Width | 270 mm |
The system measures DC voltage, RMS voltage, current (with shunts), and temperature using Pt 100 probes or thermocouples.
Users can perform addition, subtraction, multiplication, and division between channels, as well as automatic unit conversion.
