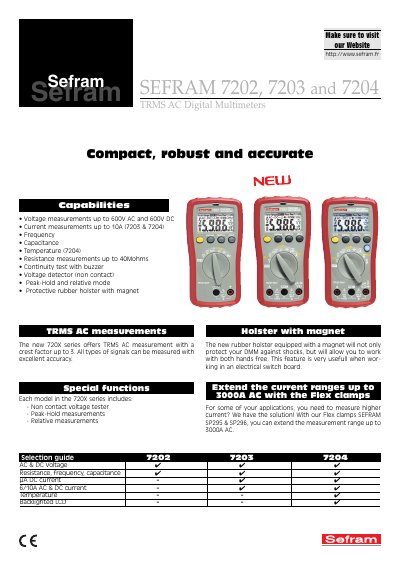

The SEFRAM 7202, 7203, and 7204 TRMS AC digital multimeters measure up to 600 V AC/DC, 10 A current, frequency, capacitance, and temperature with a backlit…
The 720X series from SEFRAM offers true‑RMS AC measurements with a crest factor up to 3, covering voltage, current, frequency, capacitance, resistance, continuity, diode testing, and temperature (7204). Special features include a non‑contact voltage detector, peak‑hold, relative mode, and a magnetic rubber holster for hands‑free use.
Technical specifications detail measurement ranges, accuracy, resolution, and protections for each function. The multimeters are supplied with batteries, safety leads, a manual, a thermocouple for the 7204, and the protective holster, and they operate on two AAA cells with typical 300 h autonomy.
| DC Voltage Range | 600 mV to 600 V |
|---|---|
| AC Voltage Range (TRMS) | 600 mV to 600 V |
| DC Current Range (10 A models) | 6 A to 10 A |
| AC Current Range (TRMS, 10 A models) | 6 A to 10 A |
| Frequency Range | 100 Hz to 50 kHz |
| Capacitance Range | 50 nF to 1000 µF |
| Resistance Range | 600 Ω to 40 MΩ |
| Temperature Range (7204) | -40 °C to +400 °C |
| Display | LCD with backlight |
| Dimensions (with holster) | 77 × 148 × 45 mm |
| Weight (with holster) | 320 g |
| Power Supply | 2 × 1.5 V AAA batteries |
The multimeters measure up to 600 V AC and 600 V DC.
By using SEFRAM SP295 & SP296 Flex clamps, the range can be extended up to 3000 A AC.
Yes, it features a non‑contact voltage tester.
It comes with batteries, a set of safety test leads, a manual, a thermocouple for the 7204, and a rubber holster.
