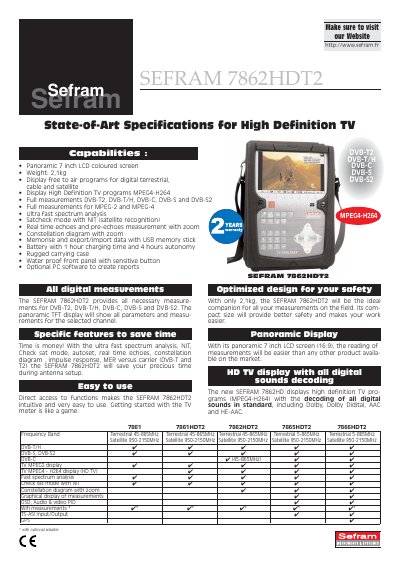

Technical specifications for the SEFRAM 7862HDT2 panoramic TV meter, covering frequency ranges, display, power, and measurement features.
The SEFRAM 7862HDT2 is a portable panoramic TV meter designed for field use. It features a 7‑inch colour LCD (800×480) that displays measurements for DVB‑T2, DVB‑T/H, DVB‑C, DVB‑S and DVB‑S2, including HD MPEG‑4/H.264 programs. The unit includes ultra‑fast spectrum analysis, Satcheck mode with NIT, real‑time echoes, constellation diagrams and USB data export.
Weighing 2.1 kg, the meter runs on a Li‑Ion battery with about 3 hours of autonomy and a 1‑hour quick‑charge to 80 % capacity. It offers multiple interfaces (USB, Ethernet, RF, audio/video) and optional accessories such as a Wi‑Fi adaptor, accessory pouch, software kit and car‑cigarette‑lighter power supply.
| Frequency Range (Terrestrial) | 45‑865 MHz |
|---|---|
| Frequency Range (Satellite) | 950‑2150 MHz |
| Display | 7‑inch colour LCD, 800×480 dots |
| Weight | 2.1 kg |
| Battery Capacity | Li‑Ion 70 W, 3 h autonomy |
| Charging Time | 1 h to 80 % capacity |
| USB Interfaces | 2 × USB (A and mini‑B) |
| Accuracy | ±2 dB |
