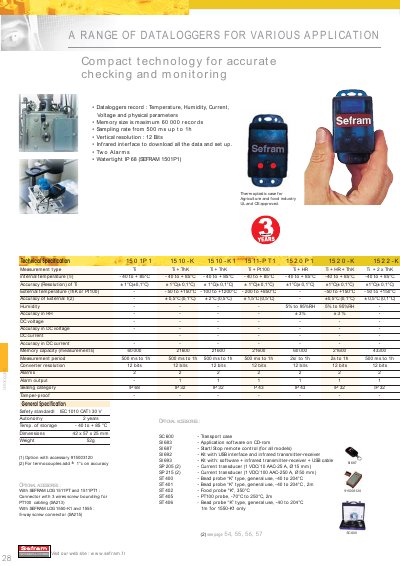

This document introduces 28 INSTRUMENTS & SYSTEMES's product: Dataloggers, including temperature, humidity, voltage, current and other parameters. The measurement range is wide, the accuracy is high, the memory capacity is large, and the sampling rate is adjustable. It is suitable for agriculture and food industries.
The SEFRAM datalogger series records temperature, humidity, voltage, current and other physical parameters. Models support a memory capacity of up to 60 000 records and sampling rates from 500 ms to 1 h, with a 12‑bit vertical resolution. All units are housed in a thermoplastic case rated IP68 for agricultural and food‑industry environments.
Optional accessories include transport cases, software CDs, remote start/stop modules, USB/infrared interface kits and various probes (K‑type, PT100, bead). The devices meet IEC 1010 safety standards, have a two‑year autonomy, and are UL, CE, and IP certified.
| Measurement period | 500 ms to 1 h |
|---|---|
| Memory capacity | 60 000 records |
| Sealing category | IP68 |
| Dimensions | 42 × 57 × 25 mm |
| Weight | 52 g |
| Autonomy | 2 years |
Each unit can store up to 60 000 measurement records.
The 1501P1 model is rated IP68 for water resistance.
All models provide two alarm outputs.
Sampling can be set from 500 ms up to 1 hour.
