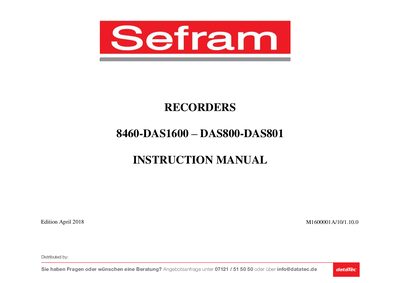

Instruction manual for SEFRAM DAS1600, DAS800 and DAS801 recorders covering installation, operation, maintenance and specifications.
The SEFRAM DAS1600/DAS800/DAS801 recorder manual provides detailed guidance on setting up the instrument, connecting inputs and outputs, and using the various measurement modes. It includes safety instructions, software update procedures, and information on network interfaces such as Ethernet, Wi‑Fi and NTP.
Technical specifications are listed, describing input ranges, accuracy, sampling rates, bandwidth and environmental limits. The manual also outlines the two‑year guarantee, support contacts and recommended maintenance intervals. This manual is written in German.
| Number of inputs per module | 6 |
|---|---|
| Impedance (low voltage) | 11 MΩ for <10 V |
| Maximum input voltage range | ±2000 V (4000 V total) |
| Accuracy (full scale) | ±0.2 % FS |
| Sampling resolution | 14 bits |
| Maximum sampling frequency | 1 MHz |
The instrument is guaranteed for two years for labor and parts against manufacturing defects.
Technical support can be reached by e‑mail at [email protected].
No. The Li‑ion battery must stay inside the appliance and may only be replaced at the factory.
Use the menu item "UPDATING THE INTERNAL SOFTWARE" as described in the manual.
