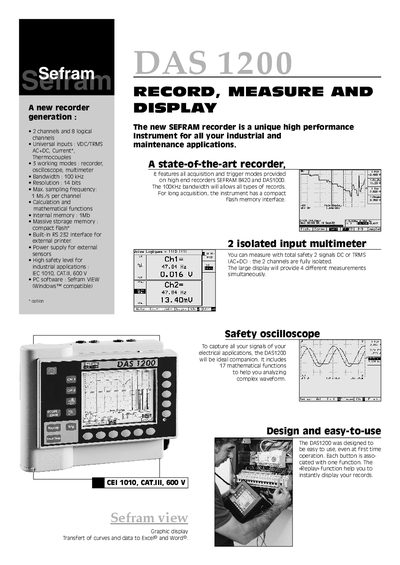

Sefram DAS 1200 recorder is the latest version of the SEFRAM 8420 and DAS1000 high-end recorders, with all acquisition and triggering modes. It has 2 fully isolated channels, allowing safe measurement of 2 DC or TRMS (AC+DC) signals. The large display provides 4 different measurements simultaneously.
The DAS 1200 is a high‑performance recorder designed for industrial and maintenance applications. It combines three measurement modes – recorder, oscilloscope and multimeter – with a 100 kHz bandwidth and isolated inputs for safe DC or AC measurements.
The handbook details the device’s technical specifications, including channel isolation, sampling rates, memory options, power requirements, and optional accessories such as safety test leads and compact flash cards. Safety compliance with IEC 1010, CAT III, 600 V standards is also documented.
| Channels | 2, isolated |
|---|---|
| Bandwidth | 45 Hz to 500 Hz |
| Vertical Resolution | 12 bits |
| Maximum Sampling Rate | 4 MS/s per channel |
| Internal Memory | 1 Mb |
| Compact Flash Capacity | 256 M (option) |
| Power Supply | 9 V DC, 4.5 A max |
| Dimensions | 210 × 344 × 80 mm |
| Accuracy | +0.2 % of range + 10 µV + 0.2 % of offset |
It operates in three modes: recorder, oscilloscope, and multimeter.
The device provides two isolated channels for safe measurement of DC or AC signals.
The recorder can sample up to 4 MS/s per channel.
It meets IEC 1010, CAT III, and 600 V safety requirements for industrial use.
