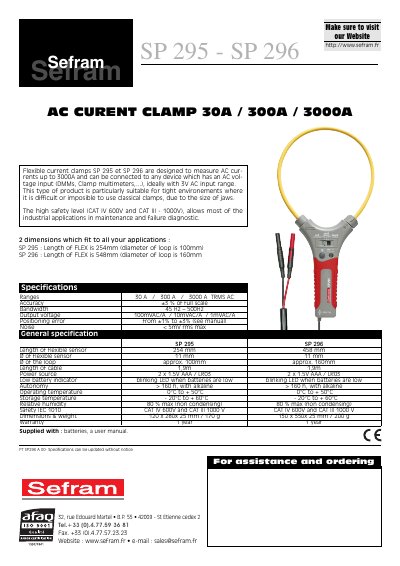

The Sefram SP 295 and SP 296 AC current clamps measure up to 3000 A, offering CAT IV 600 V / CAT III 1000 V safety and flexible sensor lengths for tight spaces.
The SP 295 and SP 296 are flexible AC current clamps designed for industrial maintenance and failure diagnostics. They can measure currents from 30 A up to 3000 A and connect to any device with an AC voltage input, making them suitable for cramped environments where conventional clamps are impractical.
The clamps feature a TRMS accuracy of ±3 % full‑scale, a bandwidth of 45 Hz–500 Hz, and output voltages of 100 mV/A, 10 mV/A or 1 mV/A. They are powered by two 1.5 V AAA batteries, include a low‑battery LED indicator, and meet IEC 1010 safety ratings CAT IV 600 V and CAT III 1000 V. Dimensions, sensor lengths and loop diameters differ between the SP 295 and SP 296 models. This manual is written in French.
| Current range | 30 A / 300 A / 3000 A |
|---|---|
| TRMS AC Accuracy | ±3 % of full scale |
| Bandwidth | 45 Hz – 500 Hz |
| Output voltage | 100 mV/A / 10 mV/A / 1 mV/A |
| Power source | 2 × 1.5 V AAA batteries |
| Flexible sensor length (SP 295) | 254 mm |
| Loop diameter (SP 295) | ≈ 100 mm |
| Operating temperature | 0 °C to +50 °C |
| Safety rating | IEC 1010 CAT IV 600 V and CAT III 1000 V |
The clamps can measure up to 3000 A, with selectable ranges of 30 A, 300 A and 3000 A.
It complies with IEC 1010 CAT IV 600 V and CAT III 1000 V safety standards.
The device is powered by two 1.5 V AAA (LR03) batteries and includes a low‑battery LED indicator.
