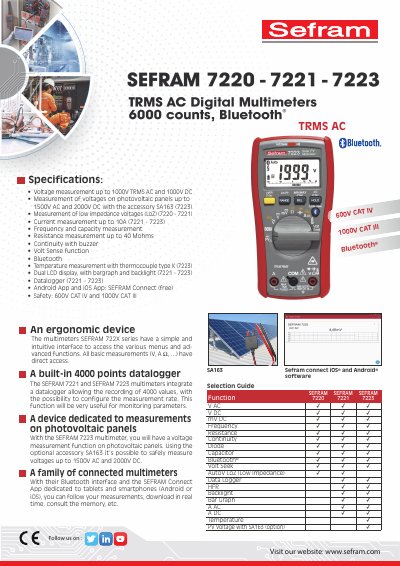

Product specifications and features for the SEFRAM 7220, 7221, and 7223 digital multimeters, including voltage, current, and temperature measurements.
The SEFRAM 722X series consists of ergonomic digital multimeters (models 7220, 7221, and 7223) featuring a 6000-count display and Bluetooth connectivity. These devices offer a wide range of measurement functions including voltage, current, resistance, frequency, capacitance, and temperature, with specific models supporting low impedance voltage and photovoltaic panel measurements.
| Counts | 6000 counts |
|---|---|
| DC Voltage Range | 600mV to 1000V |
| AC Voltage Range | 600mV to 1000V |
| DC Current Range | 6A to 10A |
| Resistance Range | 600 ℘ to 40M ℘ |
| Capacitance Range | 1µF to 10mF |
| Frequency Range | 100Hz to 100kHz |
| Temperature Range | -40°C to 400°C |
| Memory | 4000 points |
| Interface | Bluetooth with Sefram Connect App |
| Operating Temperature | -10°C to 50°C |
| Power Requirement | AA 1.5V x 2 batteries |
| Dimensions | 74mm x 156mm x 44mm |
| Weight | 250g |
| Safety Rating | CAT III 1000V, CAT IV 600V |
The maximum DC voltage range is 600mV to 1000V.
Yes, the SEFRAM 7223 model supports temperature measurement with a thermocouple type K.
The built-in datalogger allows the recording of 4000 values.
The operating temperature range is -10°C to 50°C.
