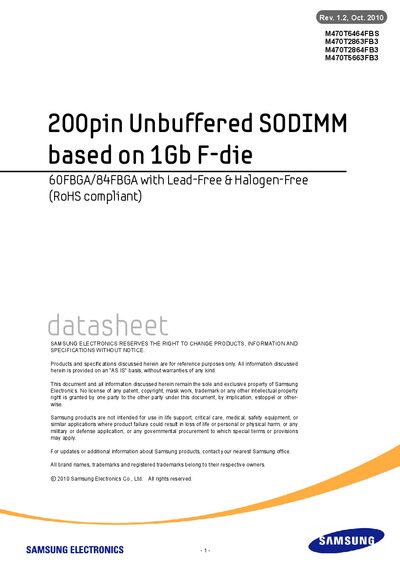

Samsung datasheet that details specifications, pin configurations, electrical characteristics and dimensions for unbuffered DDR2 SDRAM SODIMM modules.
About this manual
This datasheet describes Samsung's unbuffered DDR2 SDRAM SODIMM family, covering part numbers M470T6464FBS, M470T2863FB3, M470T2864FB3 and M470T5663FB3. It provides ordering information, key features, pin layouts, functional block diagrams and electrical ratings.
The document is organized into sections such as Ordering Information, Key Features, Pin Configurations, Functional Block Diagram, Electrical Characteristics, Physical Dimensions and Operating Conditions, allowing designers to quickly locate the data needed for system integration.
What's inside
- Ordering Information
- Key Features
- Address Configuration
- Pin Configurations
- Functional Block Diagram
- Electrical Characteristics & AC Timing
- Physical Dimensions
- Operating Conditions
- IDD Specification Parameters
Specifications
| Core voltage (VDD) | 1.8 V ± 0.1 V |
|---|
| Package type | 60‑ball FBGA – 128Mx8 (also 84‑ball FBGA – 64Mx16) |
|---|
| Maximum data rate (CL5) | 800 Mbps |
|---|
| Module length | 67.60 ± 0.15 mm |
Frequently asked questions
What is the operating voltage of the DDR2 SDRAM modules?
The core and I/O supply voltage is 1.8 V ± 0.1 V.
What package types are used for these SODIMM modules?
Modules use a 60‑ball FBGA package for the 128Mx8 configuration and an 84‑ball FBGA package for the 64Mx16 configuration.
What is the maximum data rate supported at CL5?
The modules support up to 800 Mbps at CL5.
