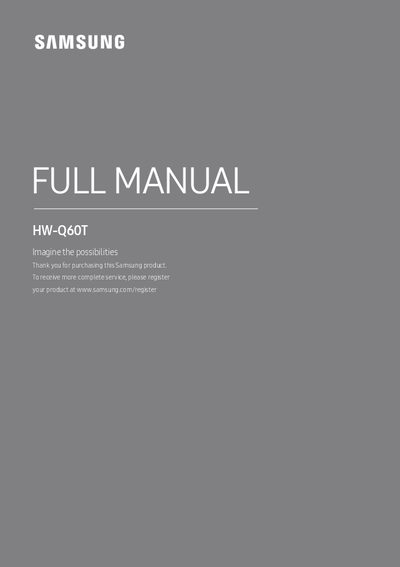

The Samsung HW‑Q60T soundbar full manual provides safety instructions, installation steps, connection guides, and specifications.
This manual covers safety information, component checking, and detailed installation procedures for the Samsung HW‑Q60T soundbar and its wireless subwoofer. It includes wiring diagrams, remote‑control usage, wall‑mount installation, and software‑update instructions.
Additional sections provide troubleshooting tips, warranty details, and a full list of technical specifications such as power output, supported audio formats, and dimensions of both the soundbar and subwoofer.
| Model Name | HW-Q60T |
|---|---|
| USB Power | 5V/0.5A |
| Weight | 7.5 lbs (3.4 kg) |
| Dimensions (W x H x D) | 38.6 x 2.3 x 4.2 inches (980.0 x 58.0 x 105.0 mm) |
| Operating Temperature Range | +41°F to +95°F (+5°C to +35°C) |
| Operating Humidity Range | 10 % ~ 75 % |
| Amplifier Rated Output Power (Soundbar) | 30W x 6 + 10W x 2 |
| Supported Play Formats | LPCM 2ch, Dolby Audio, DTS, DTS Virtual:X |
| Subwoofer Name | PS‑WR65BB |
| Subwoofer Weight | 13.7 lbs (6.2 kg) |
| Subwoofer Dimensions (W x H x D) | 8.1 x 13.9 x 11.9 inches (205.0 x 353.0 x 303.2 mm) |
| Subwoofer Amplifier Rated Output Power | 160W |
The product is covered by a one‑year limited warranty for parts and labor (90 days for commercial use).
The soundbar delivers 30 W per channel for six channels and 10 W per channel for two channels, for a total of 30W × 6 + 10W × 2.
