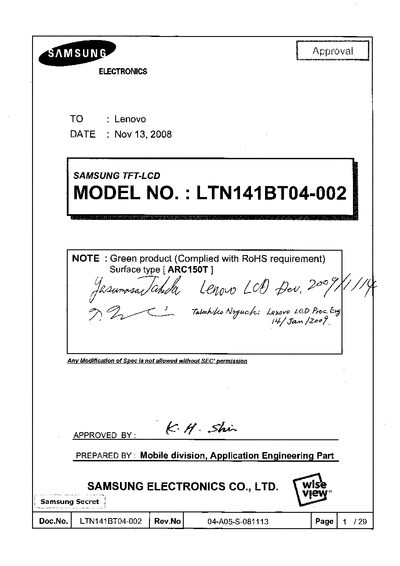

The Samsung LTN141BT04-002 TFT LCD Module datasheet provides specifications, ratings, and interface details for the 14.1" display.
The LTN141BT04-002 is a 14.1‑inch color active‑matrix TFT LCD module with a resolution of 1440 × 900 pixels. It integrates a TFT panel, driver circuitry, and LED backlight, offering high contrast, wide viewing angles, and low power consumption.
The document lists absolute maximum ratings, optical and electrical characteristics, LVDS interface timing, and handling guidelines. It also includes storage recommendations, power‑on/off sequence, and EDID information for system integration.
| Resolution | 1440 x 900 pixels |
|---|---|
| Display Size | 14.1" diagonal |
| Power Supply Voltage (VDD) | 3.3 V |
The module has a resolution of 1440 × 900 pixels.
The module requires a VDD of 3.3 V.
