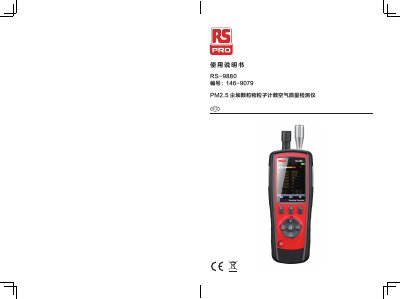

This manual covers the operation of the RS RS-9880 air quality detector, which measures PM2.5/PM10 particle concentration, temperature, humidity, and…
The RS RS-9880 is a handheld air quality detector designed to measure fine particulate matter (PM2.5), coarse particles (PM10), as well as air temperature and relative humidity. It features a 2.8-inch color LCD screen with the ability to capture photos and record video, storing data on an SD card for later analysis. This manual is written in Chinese.
| Display Screen | 2.8" Color LCD (320 x 240 pixels) |
|---|---|
| Particle Counting Channels | 0.3, 0.5, 1.0, 2.5, 5.0, 10um |
| Sampling Flow Rate | 2.83L/min (0.1ft³) |
| Counting Efficiency | 50% @ 0.3μm; 100 % when diameter > 0.45μm |
| Data Storage Capacity | > 5000 groups of sampling data (with SD card) |
| Air Temperature Range | 0 to 50°C (32 to 122°F) |
| Relative Humidity Range | 0 to 100%RH |
| Battery Operating Time | Approx. 4 hours continuous work |
The instrument measures PM2.5/PM10 mass concentration in a range of 0-500ug/m³.
Yes, it can take photos and record video which are stored on an SD card for display on a PC.
It is suggested to use it as little as possible daily; average use of 5 times a day allows for about 5 years of instrument life.
