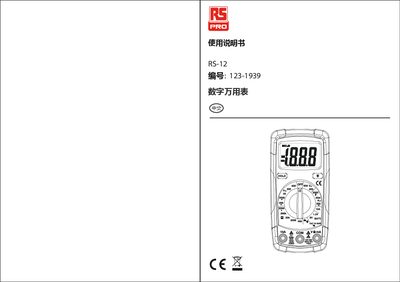

RS RS-12 Digital Multimeter User Manual

This manual provides operating instructions, safety guidelines, and technical specifications for the RS RS-12 digital multimeter.

Brand: RS
Category: multimeter
Document type: User Manual
Language: Chinese
Pages: 6
File format: PDF
File size: 1.4 MB
Published: 13 October, 2026
Updated: 13 October, 2026
MD5 checksum: 129AC4E211B861105956AF944CE12E10
PDF: RS RS-12 Digital Multimeter User Manual PDF

About this manual

The RS RS-12 is a handheld digital multimeter designed for measuring DC/AC voltage, current, resistance, diode drop, and battery status. It features an LCD display with backlighting, data hold functionality, and non-contact AC voltage detection to assist in identifying live circuits safely. This manual is written in Chinese.

What's inside

Safety Manual
Control & Ports
Technical Specifications
Battery Installation
Operating Instructions
Resistance Measurement
Diode Test

Specifications

Display	3 ½ digits, 2000 count LCD display
Battery Type	1 x 9V (NEDA 1604)
Operating Temperature	32°F to 122°F (0°C to 50°C)

Frequently asked questions

What happens if the battery is low?

The display will show a 'BAT' symbol indicating that the battery voltage is insufficient.

What indicates a short circuit during resistance testing?

The instrument will emit a beep sound if the resistance is less than 30Ω.
