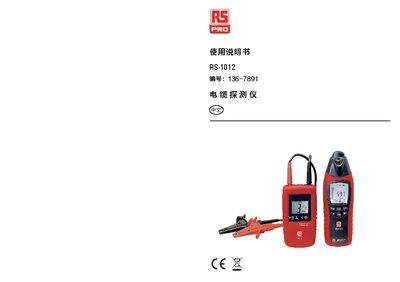

The RS-1012 cable detector user manual provides safety instructions, operation principles, technical specifications and maintenance procedures.
This manual explains how to safely use the RS-1012 cable detector, describing the transmitter and receiver functions, safety warnings, and proper handling before each measurement. It also covers various application scenarios such as wall, floor, underground and pipe tracing.
Technical data, battery replacement steps, and maintenance guidelines are included, along with detailed specifications for signal output, voltage ranges, power consumption, dimensions and operating limits. This manual is written in Chinese.
| Output signal frequency | 125 kHz |
|---|---|
| External voltage range | 12‑400 V |
| Frequency measurement range | 0‑60 Hz |
| Power supply | 1×9 V NEDA 1604 |
| Maximum power consumption | 18 mA |
| Fuse rating | 0.5 A 500 V |
| Operating temperature range | 0 °C – 40 °C |
| Storage temperature range | 20 °C – 60 °C |
| Dimensions (transmitter) | 130 × 69 × 32 mm |
| Weight (transmitter) | ≈130 g |
| Automatic shutdown (receiver) | ≈5 min (no operation) |
The device can operate from 0 °C to 40 °C.
The transmitter outputs a 125 kHz signal.
