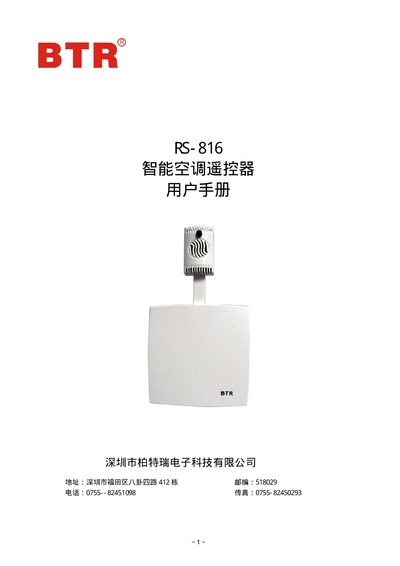

RS RS-816 Wireless Remote Controller User Manual

The RS-816 wireless remote controller user manual provides operating instructions, technical specifications, and wiring details.

Brand: RS
Category: Industrial Robot
Document type: User Manual
Language: Chinese
Pages: 4
File format: PDF
File size: 72 KB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 14A28D5203DB45566355379E55648777
PDF: RS RS-816 Wireless Remote Controller User Manual PDF

About this manual

This manual describes the RS-816 wireless remote controller, its functions, LED indicators, and how to install and operate the device safely. It includes details on power supply, communication interfaces, and environmental limits.

Technical specifications such as voltage, current, operating temperature, humidity range, dimensions, weight, and supported RS485/RS232 protocols are listed, along with wiring diagrams for JP1 and JP2 connectors and configuration options for AUTO, COOL, HEAT, and other modes. This manual is written in Chinese.

What's inside

Features
Technical Specifications
Operation Instructions
Wiring Diagram
LED Indicators
Power Supply
Communication Interfaces
Safety Precautions

Specifications

Power supply current	25‑60 mA
Dimensions	151 × 86 × 30 mm
Communication interfaces	RS485 / RS232, 1200 bps ~ 38400 bps, data bits 0 ~ 255

Frequently asked questions

What voltage and current are required to power the RS-816?

The controller requires a 12 V DC supply with a current draw of 25 mA to 60 mA.

Which communication protocols does the RS-816 support?

It supports both RS485 and RS232 interfaces, with baud rates from 1200 bps to 38400 bps and data bits ranging from 0 to 255.

Download PDF (72 KB)
