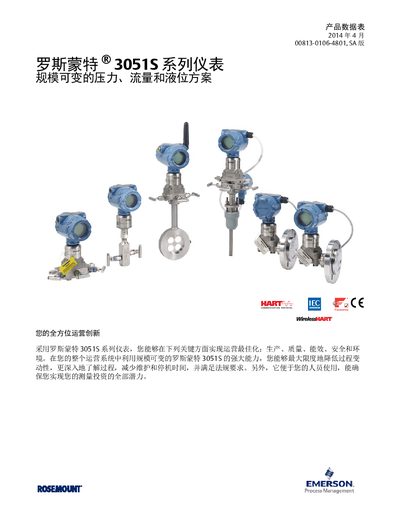

This datasheet details the Rosemount 3051S series instruments for scalable pressure, flow, and level measurement solutions.
The Rosemount 3051S series offers scalable solutions for pressure, flow, and level measurement, designed to optimize operations in production, quality, energy efficiency, safety, and the environment. The series features a SuperModule platform with all-welded sealed stainless steel designs for high field reliability and includes Ultra performance options with ±0.025% accuracy and a 200:1 rangeability.
The document covers various product types within the series, including Coplanar transmitters, Inline transmitters, Multivariable transmitters, Differential pressure flowmeters, Electronic Remote Sensor (ERS) systems, and Level transmitters. It provides ordering information, technical specifications, and certification details for these industrial process control instruments. This manual is written in Chinese.
| Accuracy (Ultra Performance) | ±0.025% of range |
|---|---|
| Rangeability (Ultra Performance) | 200:1 |
| Stability Guarantee | 15 years |
| Safety Integrity Level | SIL3 |
| Measurement Types | Differential, Gauge, Absolute |
The Ultra performance level provides an accuracy of ±0.025% of range.
Yes, the series has SIL3 capability certified by recognized third-party agencies according to IEC 61508.
The instruments support 4-20 mA HART, Wireless, and FOUNDATION fieldbus protocols.
