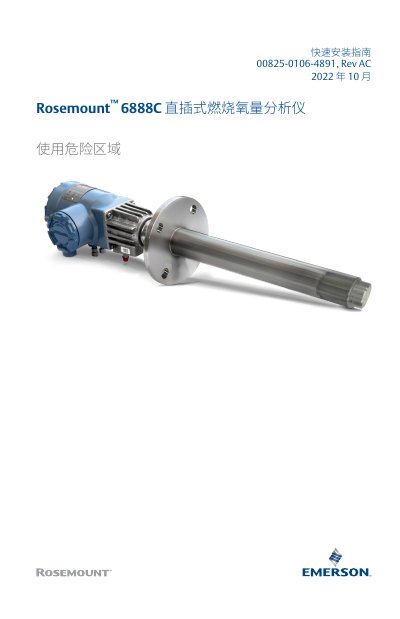

Quick installation guide for the Rosemount 6888C burner oxygen analyzer, covering safety, mechanical and electrical installation steps.
This guide provides essential safety instructions for installing the Rosemount 6888C burner oxygen analyzer. It emphasizes the need for qualified personnel, proper grounding, and adherence to local and national regulations to prevent explosion, electric shock, and equipment damage.
The document details mechanical installation of the probe, including flange mounting, orientation of the V‑shaped deflector, and wiring requirements. Electrical installation instructions cover power connection, 4‑20 mA signal wiring, breaker specifications, and grounding practices to ensure safe and reliable operation. This manual is written in Chinese.
| Signal Output | 4‑20 mA |
|---|---|
| Power Voltage | 120/240 VAC ±10%, 50/60 Hz |
| Ground Wire Minimum Size | 14 AWG |
