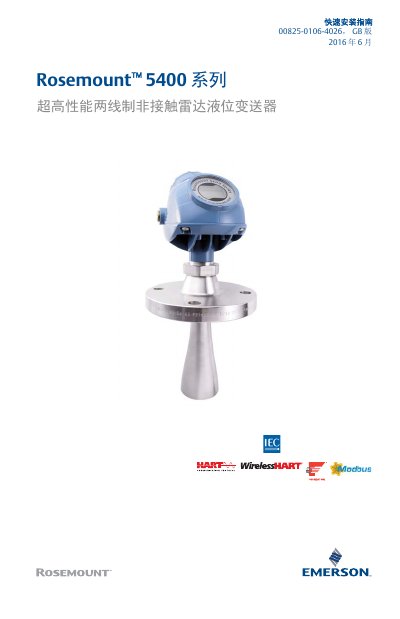

Rosemount 5400 Series Non-Contact Radar Level Transmitter Quick Installation Guide

This quick installation guide provides basic installation and configuration steps for the Rosemount 5400 series ultra‑high‑performance two‑wire non‑contact…

Brand: Rosemount
Category: Other device
Document type: Quick Start Guide
Language: Chinese
Pages: 44
File format: PDF
File size: 6 MB
Published: 07 October, 2026
Updated: 07 October, 2026
MD5 checksum: 7758D26E8FD6A48C3CDD0630B4085213
PDF: Rosemount 5400 Series Non-Contact Radar Level Transmitter Quick Installation Guide PDF

About this manual

The guide outlines safety requirements, such as using qualified personnel, disconnecting power, and following intrinsic safety rules for explosive environments. It also details system readiness checks, including HART version verification and driver updates.

Installation procedures cover various antenna types (flanged, process‑sealed, rod, and three‑clamp), wiring, and torque specifications (40 Nm / 30 Lbft). Configuration steps describe switching HART modes and setting device information, while the instrument safety system and product certification sections address compliance with hazardous‑area standards. This manual is written in Chinese.

What's inside

Confirm System Ready
Install Transmitter Head / Antenna
Wiring
Configuration
Instrument Safety System
Product Certification
Model Parts List

Specifications

Supported HART versions	HART 5 and HART 7
Recommended flange torque	40 Nm (30 Lbft)
Firmware version label	SW 2C.0

Frequently asked questions

Which HART versions can be used with the Rosemount 5400 series?

The transmitter can be configured to use either HART version 5 or HART version 7.

What torque is required when tightening the antenna flange?

A torque of 40 Nm (30 Lbft) should be applied to the flange bolts.
