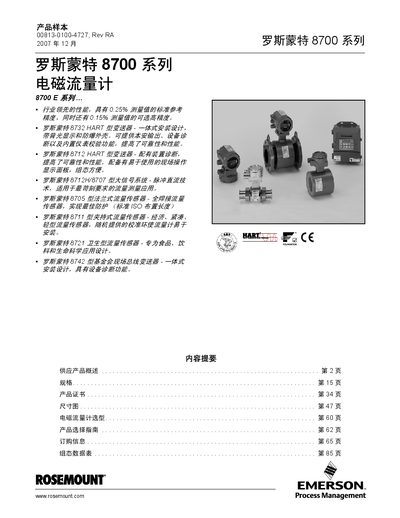

This product catalog details the Rosemount 8700 Series electromagnetic flowmeters, covering transmitters, sensors, specifications, and configuration data.
The Rosemount 8700 Series offers industry-leading performance with standard accuracy of 0.25% of measured value and an optional high accuracy of 0.15%. The series includes various transmitter models such as the 8732E, 8712D, 8712H, and 8742C, featuring diagnostic capabilities and compatibility with HART and Foundation Fieldbus protocols.
The catalog describes multiple sensor types including the 8705 flanged, 8707 large signal, 8711 clamped, and 8721 sanitary sensors. Key features include full-welded designs for reliability, advanced diagnostics driving Plantweb, and compatibility with various process conditions and pipe sizes. This manual is written in Chinese.
| Standard Accuracy | 0.25% of measured value |
|---|---|
| High Accuracy Option | 0.15% of measured value |
| Pipe Size Range (Flanged) | 1/2 inch to 36 inch |
| Power Supply (8732E) | 90-250 V AC or 12-42 V DC |
| Minimum Conductivity | 5 microsiemens/cm |
The standard accuracy is 0.25% of the measured value.
The 8732E, 8712D, and 8712H models support HART.
The process liquid must have a conductivity of 5 microsiemens/cm or greater.
