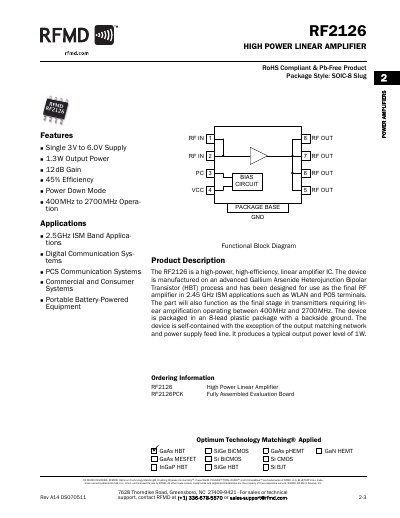

Datasheet for the RFMD RF2126 high-power, high-efficiency linear amplifier IC designed for 2.45 GHz ISM applications and frequencies up to 2700 MHz.
The RF2126 is a high-power, high-efficiency linear amplifier IC manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process. It is designed for use as the final RF amplifier in 2.45 GHz ISM applications such as WLAN and POS terminals, and can also function in transmitters operating between 400 MHz and 2700 MHz. The device is packaged in an 8-lead plastic package with a backside ground and produces a typical output power level of 1W.
| Frequency Range | 400 MHz to 2700 MHz |
|---|---|
| Supply Voltage | 3.0V to 6.5V |
| Typical Output Power | 1.3W |
| Small-signal Gain | 12 dB |
| Power Added Efficiency | 45% |
| Operating Ambient Temperature | -40 to +85 °C |
| Package Type | 8-lead plastic package |
The device produces a typical output power level of 1W.
The amplifier operates with a single supply voltage ranging from 3V to 6.0V.
Yes, the product is RoHS Compliant & Pb-Free.
