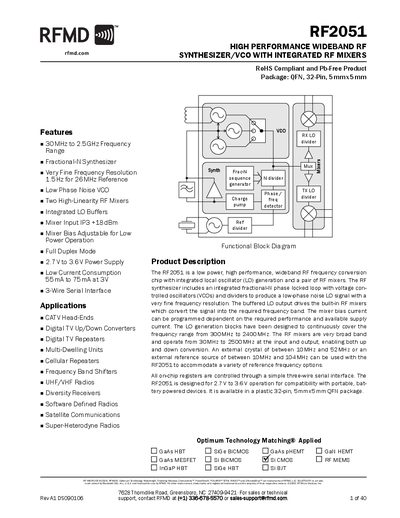

RF2051 is a low power, high performance, wideband RF frequency conversion chip from RFMD, which integrates local oscillator (LO) generation and a pair of RF mixers.
The RF2051 is a low‑power, high‑performance wideband RF frequency‑conversion chip that integrates a fractional‑N PLL, voltage‑controlled oscillators, dividers, and two high‑linearity RF mixers. It generates a low‑phase‑noise local‑oscillator signal and supports up‑ and down‑conversion from 30 MHz to 2.5 GHz.
Key specifications include a 300 MHz‑to‑2.4 GHz LO range, 2.7 V‑to‑3.6 V supply, 55 mA‑75 mA current consumption, 32‑pin QFN package, and operation from –40 °C to +85 °C. The device is RoHS‑compliant and intended for portable, battery‑powered applications such as CATV head‑ends, digital TV repeaters, and software‑defined radios.
| Frequency range (RF/IF ports) | 30 MHz – 2500 MHz |
|---|---|
| Low‑current consumption | 55 mA (one mixer) |
| High‑linearity consumption | 75 mA (one mixer) |
| Operating temperature range | -40 °C – +85 °C |
| Package | QFN, 32‑Pin, 5 mm × 5 mm |
| LO frequency range | 300 MHz – 2400 MHz |
| Phase noise @ 2 GHz LO | -130 dBc/Hz |
| RF/IF mixer input power rating | +15 dBm |
The RF/IF mixers can handle up to +15 dBm input power.
It is rated for operation from –40 °C to +85 °C.
The RF2051 comes in a 32‑pin QFN package.
